Turn weekend work into weekend time
For John Deere X300 & X500 Series

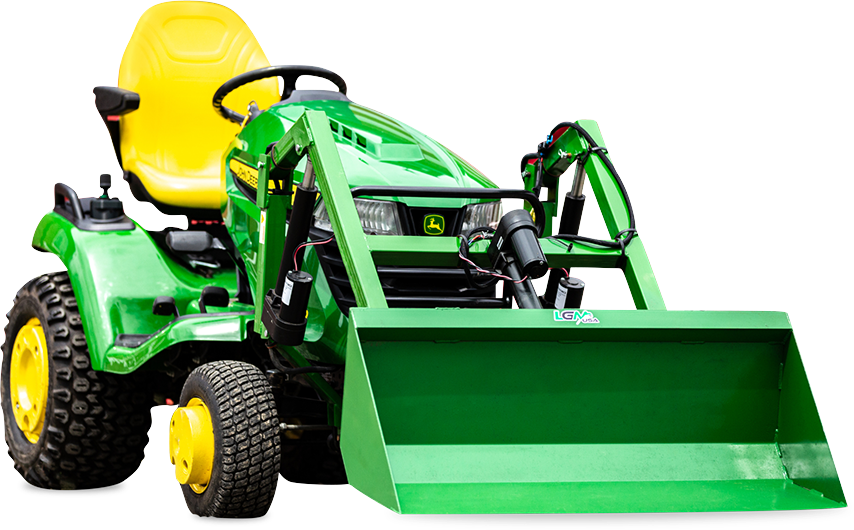

An electric front-end loader for the tractor you already own. 320 lb of lift, no hydraulics, and it mounts directly to your tractor’s frame.

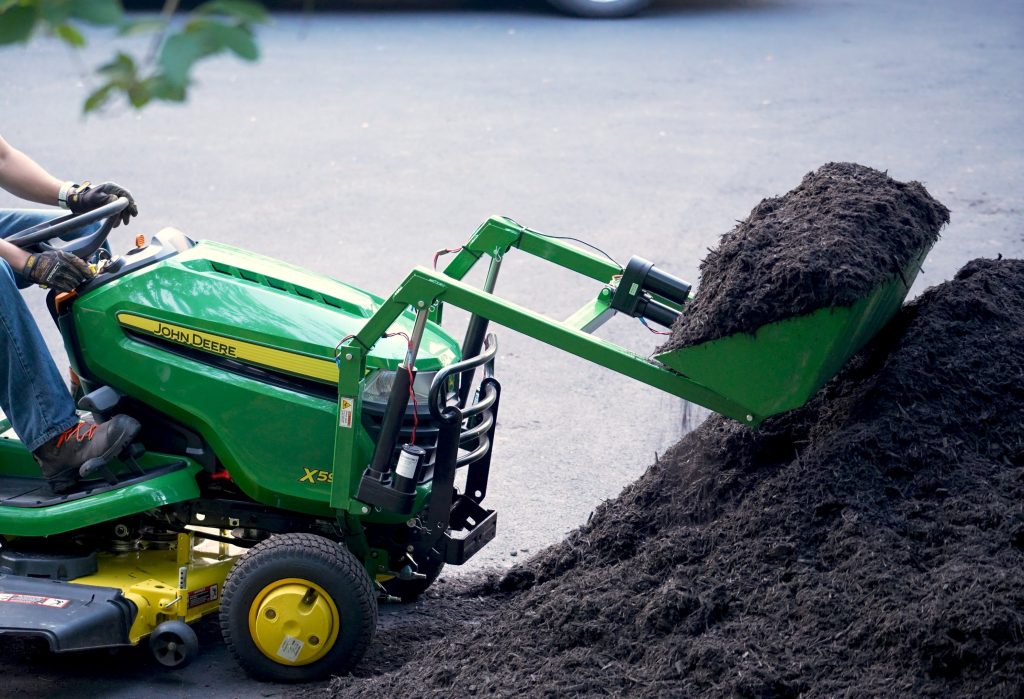

Lay down a fresh bed of topsoil for your next gardening project. Build a gravel foundation for your shed. Create a relaxing oasis in your own backyard. Get it done with the LGM-100 .
Yard work shouldn’t feel like a full-time job. Most homeowners spend hours on tasks that should be simple — moving gravel, mulch, soil, and heavy material around the property. The LGM-100 front-end loader , built for John Deere X300 and X500 series tractors with a 320 lb lift capacity, gets that work done from the seat of your tractor.
Move materials, level ground, or grade your property without renting equipment or hiring a crew. From clearing snow in winter to spreading topsoil in spring, the LGM-100 handles real homeowner property work all year. Designed for homeowners, the LGM-100 blends power, accuracy, and ease of use.
What it is
A front-end loader for a lawn tractor is an attachment that turns the tractor you already own into a tool for moving soil, mulch, gravel, firewood, and snow — all controlled from the operator’s seat.
The LGM-100 uses electric linear actuators that deliver over 1,000 lbs of force. No hydraulic hoses, no fluid to leak, no pumps to maintain. Quick lift cycles, even at full capacity.
The LGM-100 is built for homeowners who want serious lifting power without the complexity or cost of heavy equipment. Mount it on a compatible John Deere X300 or X500 lawn tractor, connect it to the 12V system, and you’re ready to lift, scoop, and move.
Built to work
Strong enough for even the toughest jobs.
Quick lift cycles, even at full capacity.
Easy to install. Easy to maintain.
Effortlessly operate your front-end loader.
The detail
The LGM-100 is built for people who want their equipment to work as hard as they do. It’s designed with solid materials, smart engineering, and the kind of durability that holds up season after season. This isn’t just another garden attachment—it’s a compact, powerful machine that brings real performance to homeowners who do their own property work.
The LGM-100 combines modern tech with dependable strength, giving you the ability to move, lift, and dump materials with confidence. Whether you’re hauling gravel, spreading mulch, or clearing snow, it delivers steady power, smooth operation, and dependable stability under load.
Here’s a quick look at the key specs of the LGM-100 and how each one helps you finish jobs faster and with less effort.
Specification Details Why It Matters Lift Capacity 320 lbs Handles topsoil, firewood, gravel, or compacted snow — covers most yard and garden loads. Linear Actuators Dual ball-screw actuators delivering over 1,000 lbs of force Electric-powered precision with smooth lifting and lower maintenance than hydraulics. Lifting Speed Reaches maximum height of 44 inches in under 7 seconds Move material quickly on repetitive tasks. Build Material Heavy-Duty Carbon Steel Built for outdoor use — resistant to corrosion and wear. Ballast Confirm recommended ballast for your specific tractor model with our support team Keeps your tractor balanced during heavy lifting or uneven terrain.
In addition to these specifications, the LGM-100 features an intuitive electric joystick control that delivers smooth, precise movement without the hassle that comes with hydraulic systems. The loader mounts directly to your tractor’s frame and significantly expands what your equipment can handle.
Built with carbon steel and powered by 12V electric actuators, this front-end loader delivers reliable performance year after year. It’s tough enough for hard-packed summer soil, wet spring mulch, and heavy winter snow.
Max lift capacity
320 lbs
Bucket capacity
3 cu ft
Total weight
180 lbs
Lift height
44 in
Bucket width
42 in
Material
Carbon Steel
Where it earns its keep
The LGM-100 transforms tedious clean-up into smooth, efficient landscaping with easy control.”

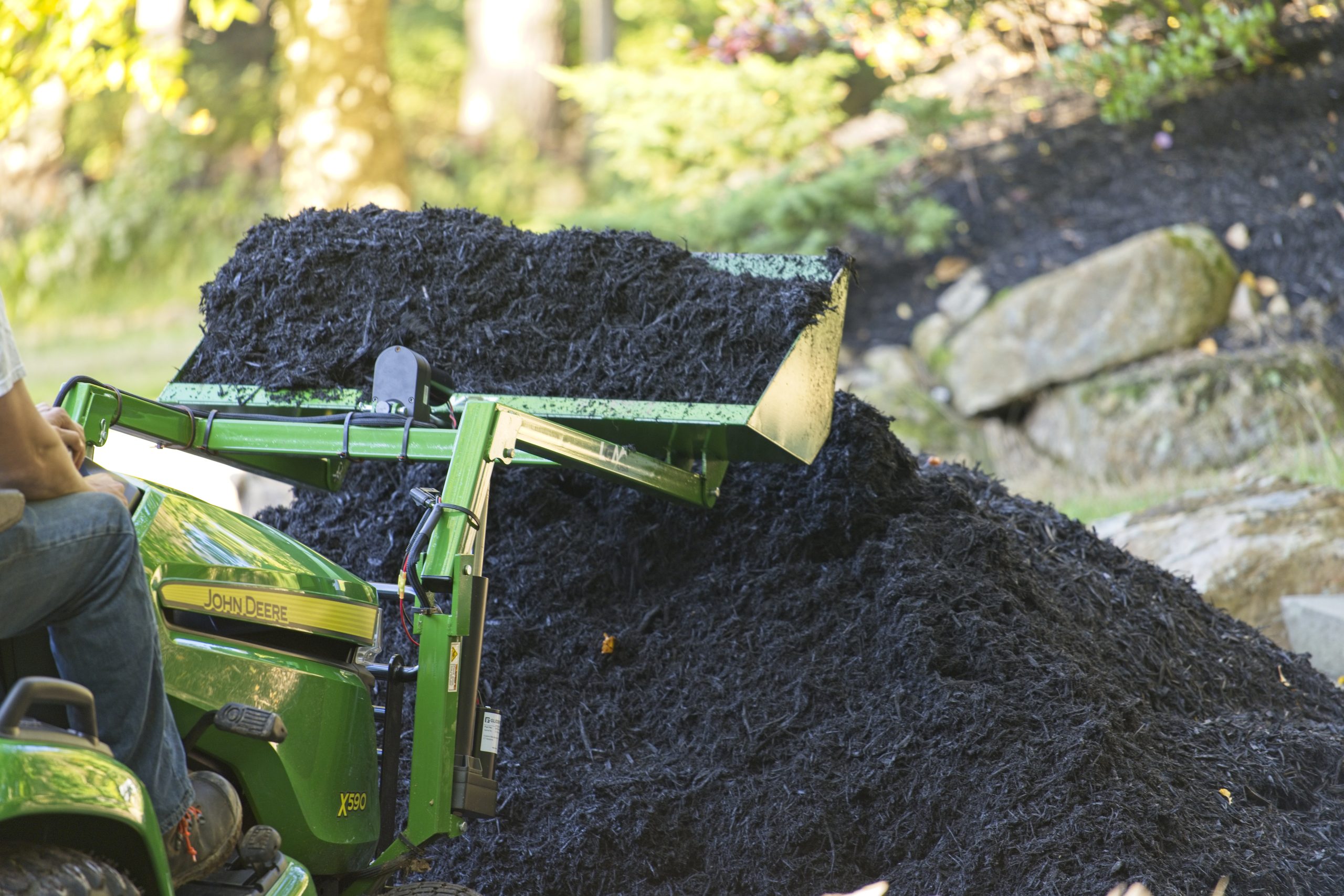

Landscaping projects often require precision and power. The LGM-100 helps with:
The LGM-100’s smooth, actuator-driven lift system lets you handle delicate placement tasks with control and accuracy.
Built for homeowners with weekend property work. The LGM-100 lets you:
The LGM-100 is built for the kind of work most homeowners actually do, year after year.
The right loader has to do three things: lift what you actually need to lift, fit your tractor without modification, and hold up over the long haul. The LGM-100 is built for John Deere X300 and X500 owners on all three counts.
Use the guide below to make a clear-headed decision before you buy.
Choosing the right kit
The LGM-100 is engineered for John Deere X300 and X500 series tractors from 2007 onward. Before purchasing, confirm:
This ensures dependable performance without overstressing the tractor’s drivetrain or frame.
Different tasks require different tools, so the LGM-100 is designed with versatile options:
Each LGM-100 is built around dual linear actuators that deliver over 1,000 lbs of force, providing consistent performance even under heavy or compacted loads.
When weighing new vs. used loaders, assess the long-term value, not just the upfront cost.
The right loader saves manual labor and gets property work done with the tractor you already own.
The LGM-100 draws modest power directly from the tractor’s 12-volt battery instead of running a separate hydraulic system.
What that means in practice:
For most homeowners, the savings show up the first time you would have otherwise rented a piece of heavy equipment or burned a full weekend on a single job.
Engineering
Behind the clean design of the LGM-100 front-end loader is real engineering. Every component, from its electric drive system to the carbon-steel frame, is built to deliver long-term reliability under load.

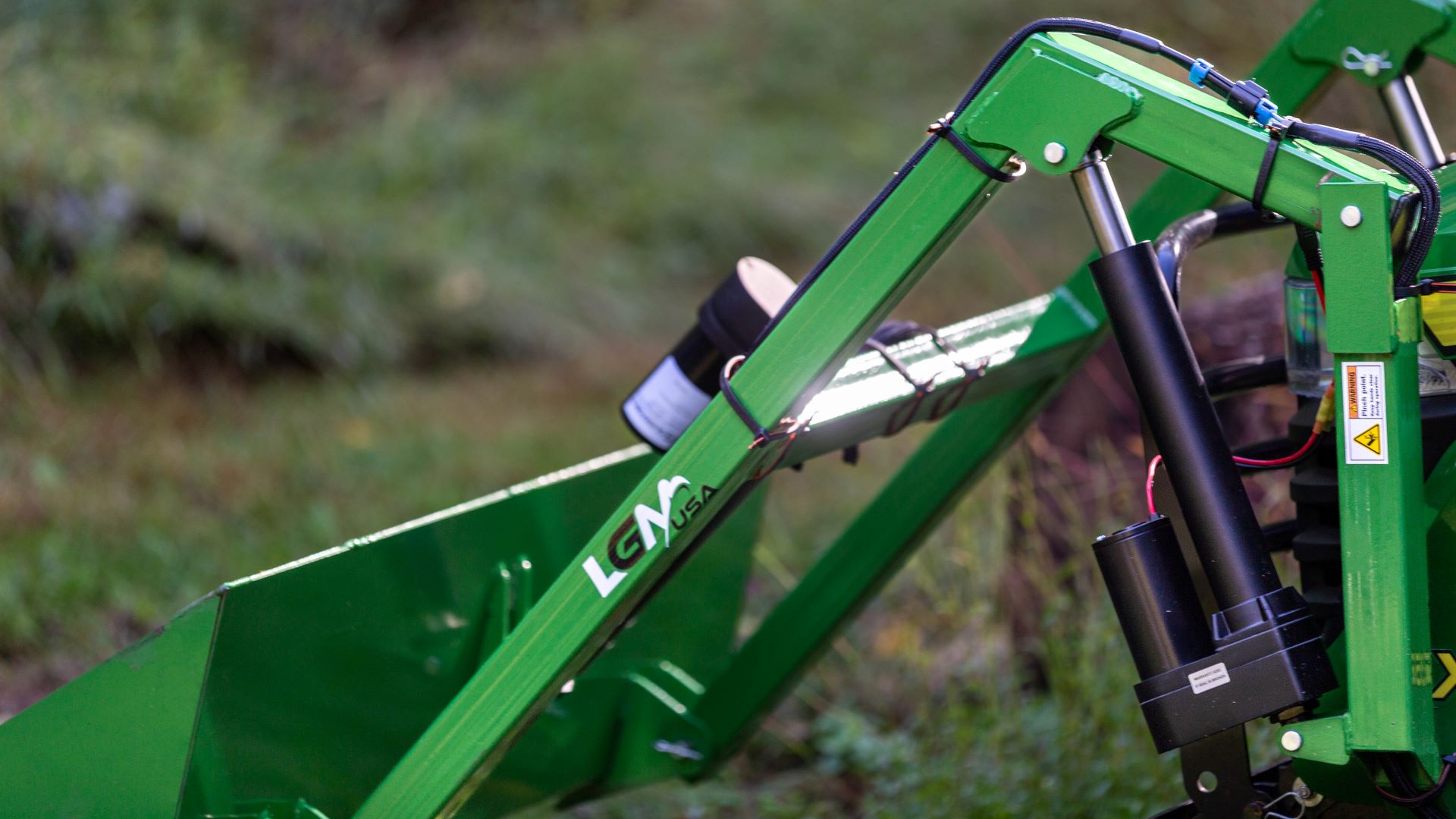

At the center of it all are dual linear actuators, each producing over 1,000 lbs of force courtesy of its ball-screw mechanism. These provide smooth and consistent motion without hydraulic pumps, hoses, or fluid. The LGM-100 achieves its lifting capability through precision gearing and controlled electrical output.
The main frame of the loader is made of high-strength carbon steel, which balances rigidity and weight for superior manageability. Corrosion-resistant coatings protect against weather exposure to make sure your loader keeps performing season after season.
It’s not just tough, it’s engineered to last, combining thoughtful design with materials proven to handle real-world conditions.
Drive type
Ball Screw
Stroke length
8 in
Dynamic load
1012 lbs (1012 lbs)
Travel time @ max capacity
14 sec (7 sec)
Voltage
12 VDC
Max current
26A (29A)
Static load
3057 lbs (3057 lbs)
Gear ratio
20:1 (10:1)
Custom sourced from Concentric International, our linear actuators are specifically designed to handle the demands of the LGM-100.
These ball-screw actuators provide over 1,000 lbs of force and lift a full load to maximum height in under 7 seconds.
We continue to refine the LGM-100 based on real customer feedback. Subscribe at the bottom of the page to hear about new product updates and accessories as they’re released.
Our joystick controller solution enables even greater control of your LGM-100 by providing more precise movement. By adding variable speed control, your electric front-end loader will move and feel like a hydraulic unit.
The Most Versatile Tractor Attachment
Buying guide
Buying a front-end loader for your lawn or garden tractor is a big investment, one that pays off when you choose the right system. Here’s a simple, seven-step process to help you make the right call:
Start with your tractor’s frame strength, the capacity of its engine, and electrical output. Compatibility ensures safe operation and efficient lifting.
Think about what you’ll use it for: moving gravel, lifting mulch, or clearing snow. Your workload helps decide the right loader class.
Estimate your typical lift weight. The LGM-100’s 320 lbs lift capacity covers the loads, ground prep, and snow most homeowners deal with year after year.
Check whether the loader is compatible with your existing implements or bucket attachments. A universal quick-attach system provides future flexibility.
Look for stability aids, mechanical locks, and safety-tested actuators. These protect both the operator and the machine.
Electric systems like the LGM-100 require minimal upkeep compared to hydraulics — a real cost and time saver.
Reliable after-sales support means that parts, service, and advice are available when you need them.
The LGM-100 front-end loader redefines what small tractors can do. Every design choice has a purpose: performance, reliability, and ease of use.
Designed for John Deere X300 and X500 lawn tractors and built for gravel, dirt, and snow removal.
The heavy-gauge carbon steel frame resists bending, rust, and fatigue — even under daily outdoor exposure.
The standard 42-inch bucket handles soil, mulch, gravel, and snow — the everyday work most homeowners do on their own property.
Raise a full bucket to maximum height in seconds, improving productivity across many tasks.
Compatible with standard rear weights or attachments to ensure balance on uneven terrain.
Every unit is backed by a comprehensive parts and performance warranty with direct dealer assistance for setup and service.
From technical teardowns to real-world projects, see how these creators use the LGM-100 to add serious power and utility to their lawn tractors.
See the LGM-100 in action as it transforms a standard lawn tractor into a versatile property-management tool. Watch as Mark from Suburban Acreage has some fun tackling a variety of real-world projects.
Follow along as Dave from Gear & Tread takes a detailed look at the design, installation, and capabilities of the LGM-100. Perfect for those who want to see the build quality up close and understand the specs before adding this upgrade to their tractor.
Getting started
Ready to get to work with your LGM-100 front-end loader? Whether upgrading from your current lawn tractor or adding a new tool to your property setup, getting started is straightforward.
Choose your preferred configuration, check for compatibility, and order securely online from our product page below, or contact our sales team directly.
Loaders ship across the continental U.S., securely packaged and ready for assembly on arrival.
The LGM-100 installs with standard tools. Our electric linear actuator system means no hydraulic lines, pumps, or fluid maintenance — keeping setup clean and straightforward.
Compatibility Verification: Please use our Tractor Compatibility Checker or call our support team to confirm fitment for your make and model prior to ordering.
Support Resources: Every purchase is accompanied by a comprehensive installation manual, online video tutorials, and expert technical support.
X300 and X500 Series. Not sure which you have? The model number is on the tractor’s side panel.
*The LGM-100 is compatible with the X540, but the controls do not fit as intended. Customers have found workarounds for this. Please contact us for more information before ordering.
Ready when you are
Not sure it fits? Send us a photo of your model plate and we will confirm before you order. We would rather have the conversation than process a return.
