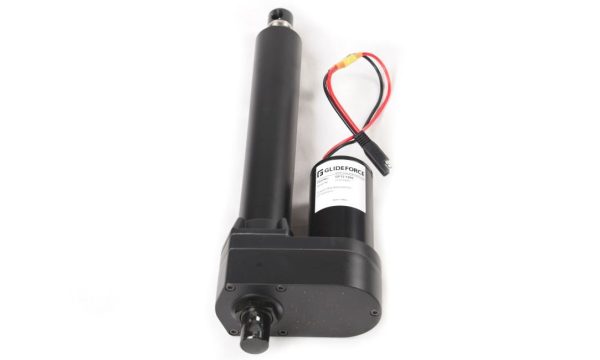

standard linear actuator
standard electric linear actuator
electric linear actuator

The standard actuator provided with the LGM-100.

Order as a spare or for another project.

See Actuator Spec Comparison

Have any question?

Call Us: (908)989-0802

$425.00

-

Continue Shopping

Linear Actuator

SKU GF12-1260 Categories , Tags , , ,

Description

This Concentric International Glideforce linear actuator is robust enough to handle your needs.



Specifications

  • Drive Type: Ball Screw
  • Stroke Length: 8 in
  • Dynamic Load: 1012 lbs
  • Travel Time at Max Capacity: 14 sec
  • Voltage: 12 VDC
  • Max Current: 26A
  • Static Load: 3057 lbs
  • Gear Ratio: 20:1
  • Motor: Standard



Order Contents:

  1. One standard linear actuator.



Read our returns & refunds policy and warranty terms.

Additional information

Weight 12 lbs
Dimensions 5 × 7 × 20 in
